Osburn 3300

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

The Osburn 3300 represents the essence of eco-friendly and efficient heating.

Full description
24 1/4"L X 30 1/2"P X 34"H
900 - 2,300 ft²
20"
0.95 g/h
Full specifications
Alain
ALAIN'S ADVICE
Customize your productSubtotal: 0
Description

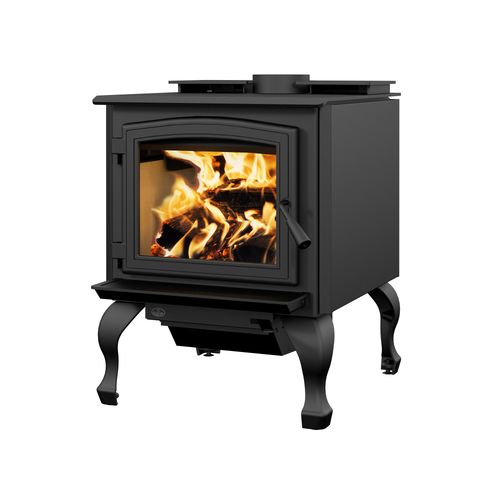

The Osburn 3300 represents the essence of eco-friendly and efficient heating. With an emission rate of 0.95 g/h, this non-catalytic wood stove is among the cleanest on the market and represents an environmentally friendly source of energy. This north-south loading model will keep your family warm all night long, even in very cold weather, thanks to its power of 90,000 BTU/h.

The design of the heater is flawless and enhanced by a set of high density bricks, a stainless steel heat shield added to the C-Cast baffle, a new cast iron door mold, an integrated ash drawer, a top heat deflector as well as decorative side panels.

This new generation wood stove offers a multitude of configuration options. In addition to the traditional or straight legs and the door overlay available in black or brushed silver, you can choose a pedestal, a rigid spark arrester, a blower with thermodisc and a glass ash lip according to your needs. Let yourself be inspired and reinvent your interior comfort!

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
24 1/4"
Overall dimension (Height)
34"
Overall dimension (Depth)
30 1/2"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 5/8"
Distance-center of the flue outlet to side unit
12 1/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
16"
Door opening size (Height)
12"
Glass type
Ceramic glass
Glass surface - W x H
14 1/2" x 11 5/8"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
19"
Firebox size (Height)
14 1/8"
Firebox size (Depth)
21"
Log positioning
Loading over depth
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
525 lb (238 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
900 - 2,300 ft²
Overall firebox volume
3.3 ft³
EPA loading volume
2.67 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
90,000 BTU/h (26.4 kW)
Minimum overall heat output rate(4)(5)
15,841 BTU/h (4.64 kW)
Maximum overall heat output rate(4)(5)
57,041 BTU/h (16.72 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71.1 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76.6 %
Optimum efficiency(1)(2)
78 %
Optimum heat transfer efficiency(8)
74 %
Average particulate emission rate(3)
0.95 g/h
Average CO(10)
61.3 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14 1/2"14 1/2"14 1/2"14 1/2"Clearance - Side wall12"12"12"12"Clearance - Corner10"10"10"10"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
