Osburn

OsburnSKU: OB02700-Bundle

Matrix 2700

Out of stock

Curbside Delivery.See Shipping & Delivery Policy

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation.

Full description

Dimension43 5/8"L X 27 1/4"P X 30 1/8"H

Heating area750 - 2,200 ft²

Maximum log length20"

Average particulate emission rate1.2 g/h

Full specifications

INSERT CONFIGURATOR

Customize your productSubtotal: 0

Recommended for installation

Accessories

Description

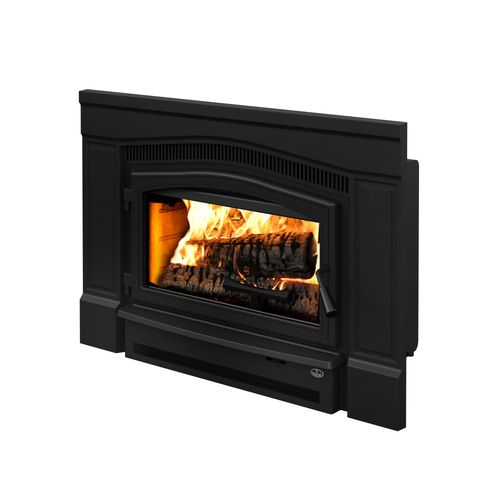

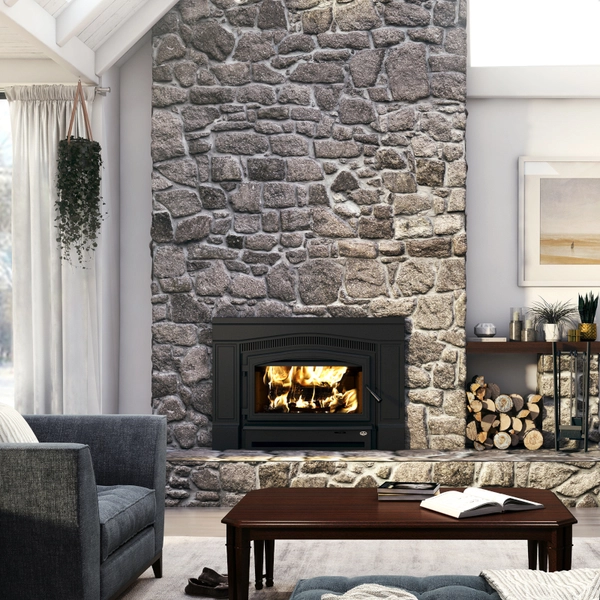

Inspired by nature, the Matrix 2700 insert is a fusion of traditional style and technological innovation. Located in the heart of your living space, the generous viewing area of the Matrix 2700 will invite you to sit back, relax and take in the calm and warmth of its flames. Eco-savvy consumers will appreciate its efficient combustion, quality performance and classic beauty.

This unit comes standard with cast iron faceplate and heat activated blower. Customize the look of this non-catalytic appliance by choosing from a black or brushed silver-plated door overlay and fire screen.

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Mobile home approved

Premium quality blower included (CFM)

176 CFM included

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

6 5/8"

Distance-center of the flue outlet to side unit

15 3/8"

Recommended chimney diameter

Type of chimney

Liner - ULC-S635, CAN/ULC-S640, UL1777

Minimum chimney height

12'

Overall dimension (Width)

43 5/8"

Overall dimension (Height)

30 1/8"

Overall dimension (Depth)

27 1/4"

Door type

Single, glass with cast iron frame

Door opening size (Width)

25 3/8"

Door opening size (Height)

10 1/2"

Glass type

Ceramic glass

Glass surface - W x H

24 3/8" x 12 5/8"

Steel thickness-body

3/16"

Steel thickness-top

3/16"

Firebox size (Width)

22 5/8"

Firebox size (Height)

12 3/8"

Firebox size (Depth)

12 7/8"

Maximum log length

20"

Log positioning

Loading over width

Firebox lined with refractory bricks

Yes

Baffle type

C-Cast or equivalent

Minimum fireplace opening (Width)

31 3/4"

Minimum fireplace opening (Height)

27 1/8"

Minimum fireplace opening (Depth)

22 1/8"

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S628

USA Standard (safety)

UL 1482, UL 737

Warranty

Limited lifetime

Shipping weight

535 lb (243kg)

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Heating area(9)

750 - 2,200 ft²

Overall firebox volume

2.5 ft³

EPA loading volume

1.94 ft³

Maximum burn time(9)

8 h

Maximum heat output-dry cordwood(4)

80,000 BTU/h (23.4 kW)

Minimum overall heat output rate(4)(5)

12,700 BTU/h (3.72 kW)

Maximum overall heat output rate(4)(5)

60,700 BTU/h (17.79 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

64 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

68 %

Optimum efficiency(1)(2)

70 %

Optimum heat transfer efficiency(8)

68 %

Average particulate emission rate(3)

1.2 g/h

Average CO(10)

98 g/h

Clearances

Canada

United States

Clearance - Combustible side wall to unit19"19"Clearance - Combustible side mantle to unit9 1/2"9 1/2"Clearance - Combustible top mantle to unit12"12"Clearance - Top of the unit to a 12" combustible mantle shelf12"12"Clearance - Base of the unit to ceiling**84"84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation and user's manual

Appliance dimensions
