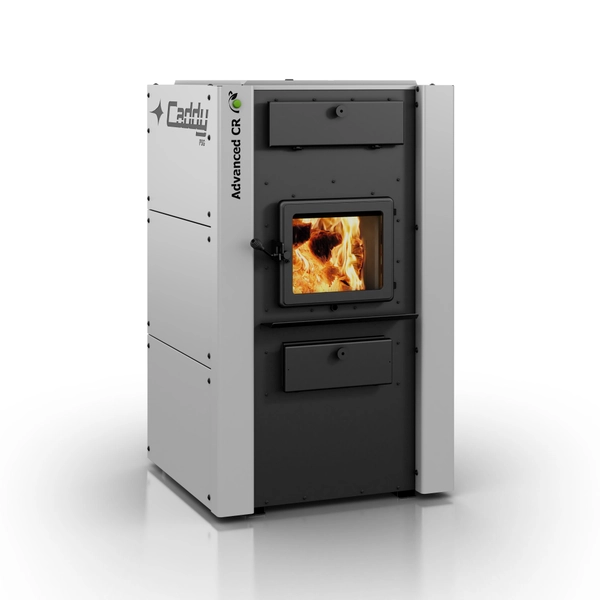

CADDY ADVANCED CR WOOD FURNACE

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

THE NEW GENERATION OF FURNACES Specially designed for those who want a multi-energy system, the Caddy Advanced CR stands out for its ease of connection to an auxiliary heating source. Equipped with a link card that allows control between the different heating modes, the Caddy Advanced CR furnace offers maximum flexibility and comfort. DISCOVER SELF-REGULATED COMBUSTION The self-regulated combustion of the Caddy Advanced CR promises constant heat, while requiring minimal effort on your part; just fill the furnace, adjust the temperature and enjoy the heat for hours! The system automatically adjusts the air supply so that combustion is optimized and synchronized with the thermostatic demand. * At start-up, the furnace injects additional combustion air for easy and quick ignition. * As the furnace goes into heating mode, it automatically adjusts the combustion air supply and the operation of the convection blower. When your home’s desired temperature is reached (thermostat setting), the furnace goes into energy saving mode, automatically reducing the combustion air and speed of the convection blower. * At the end of the combustion cycle, if the furnace needs to go back to heating mode (thermostat setting), additional combustion air is injected again to activate the combustion of the embers thus providing a hotter burn on the end of the combustion cycle. <h2>EASE OF USE 2</h2> Use the Caddy Advanced CR with confidence thanks to its intuitive operation and illustrated quick user guide. Equipped with a glass door allowing you to easily monitor the state of combustion, the furnace optimizes its combustion cycle: you will spend much less time taking care of it vs a conventional furnace (loading wood, adjusting the air, etc.). This optimization also ensures you substantial savings in firewood as well as increased comfort thanks to the production of constant heat throughout the combustion cycle. To make maintenance even easier with your Caddy Advanced CR, it is equipped with a self-diagnostic feature. A prolonged press on the main button triggers a series of standard tests to quickly identify any malfunction in a furnace component: air intake motor, thermocouple, air distribution motor, etc. If an anomaly is detected, light signals indicate the source of the problem. This feature significantly speeds up diagnosis, allowing a technician to assist you more quickly and reducing downtime for your furnace. <h2>UNMATCHED PERFORMANCE 2</h2> Among the most efficient furnaces in terms of energy distribution, the Caddy Advanced CR has one of the lowest minimum burn rates in the industry. This means a load of wood burns longer, and therefore reduces the frequency of wood loading. Emissions on this unit are amongst the cleanest of the few EPA 2020 certified furnaces, and yet the Caddy Advanced CR is among the most energy efficient on the market. In addition, the new ECM motor blower option consumes 40% less electricity (and much quieter) than a standard PSC motor blower. <h2>QUICK AND FLEXIBLE INSTALLATION 2</h2> The Caddy Advanced CR is equipped with pre-wired electrical components that allow for simplified and intuitive connection. For added flexibility, it is possible to install the blower box to the right, left or behind the furnace to optimize its footprint. It is also possible to install the filter supports to the right, left and on top of the blower box to adapt the layout of the ventilation ducts to your installation requirements. The Caddy Advanced CR includes a tool set and wall support, an ash lip, a thermostat, a moisture reader, a barometric damper and a fresh air intake adapter. **Alternate source of heat** Always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy Advanced CR comes in multiple possible configurations: wood, wood+electric, wood+gas, wood+electric+heat pump, wood+gas+heat pump and add-on. When installed as an add-on furnace, only a series configuration is approved for Canada. In the United States, both series and parallel configuration are permitted.

Full description
28 3/4"L X 42 1/2"P X 41 3/4"H
1,000 - 2,500 ft²
21"
10 h
Full specifications
Customize your productSubtotal: 0
Description

THE NEW GENERATION OF FURNACES
Specially designed for those who want a multi-energy system, the Caddy Advanced CR stands out for its ease of connection to an auxiliary heating source. Equipped with a link card that allows control between the different heating modes, the Caddy Advanced CR furnace offers maximum flexibility and comfort.

DISCOVER SELF-REGULATED COMBUSTION
The self-regulated combustion of the Caddy Advanced CR promises constant heat, while requiring minimal effort on your part; just fill the furnace, adjust the temperature and enjoy the heat for hours! The system automatically adjusts the air supply so that combustion is optimized and synchronized with the thermostatic demand.

  • At start-up, the furnace injects additional combustion air for easy and quick ignition.
  • As the furnace goes into heating mode, it automatically adjusts the combustion air supply and the operation of the convection blower. When your home’s desired temperature is reached (thermostat setting), the furnace goes into energy saving mode, automatically reducing the combustion air and speed of the convection blower.
  • At the end of the combustion cycle, if the furnace needs to go back to heating mode (thermostat setting), additional combustion air is injected again to activate the combustion of the embers thus providing a hotter burn on the end of the combustion cycle.

EASE OF USE 2


Use the Caddy Advanced CR with confidence thanks to its intuitive operation and illustrated quick user guide. Equipped with a glass door allowing you to easily monitor the state of combustion, the furnace optimizes its combustion cycle: you will spend much less time taking care of it vs a conventional furnace (loading wood, adjusting the air, etc.). This optimization also ensures you substantial savings in firewood as well as increased comfort thanks to the production of constant heat throughout the combustion cycle.

To make maintenance even easier with your Caddy Advanced CR, it is equipped with a self-diagnostic feature. A prolonged press on the main button triggers a series of standard tests to quickly identify any malfunction in a furnace component: air intake motor, thermocouple, air distribution motor, etc. If an anomaly is detected, light signals indicate the source of the problem. This feature significantly speeds up diagnosis, allowing a technician to assist you more quickly and reducing downtime for your furnace.

UNMATCHED PERFORMANCE 2


Among the most efficient furnaces in terms of energy distribution, the Caddy Advanced CR has one of the lowest minimum burn rates in the industry. This means a load of wood burns longer, and therefore reduces the frequency of wood loading. Emissions on this unit are amongst the cleanest of the few EPA 2020 certified furnaces, and yet the Caddy Advanced CR is among the most energy efficient on the market. In addition, the new ECM motor blower option consumes 40% less electricity (and much quieter) than a standard PSC motor blower.

QUICK AND FLEXIBLE INSTALLATION 2


The Caddy Advanced CR is equipped with pre-wired electrical components that allow for simplified and intuitive connection. For added flexibility, it is possible to install the blower box to the right, left or behind the furnace to optimize its footprint. It is also possible to install the filter supports to the right, left and on top of the blower box to adapt the layout of the ventilation ducts to your installation requirements.

The Caddy Advanced CR includes a tool set and wall support, an ash lip, a thermostat, a moisture reader, a barometric damper and a fresh air intake adapter.

Alternate source of heat
Always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy Advanced CR comes in multiple possible configurations: wood, wood+electric, wood+gas, wood+electric+heat pump, wood+gas+heat pump and add-on.

When installed as an add-on furnace, only a series configuration is approved for Canada. In the United States, both series and parallel configuration are permitted.

Specifications

General features

High-efficiency certified appliance
Yes, EPA 2020 approved
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Optional
Blower (hp | speed | CFM)
1/3 / 1 / 875
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Overall dimension (Width)
28 3/4"
Overall dimension (Height)
41 3/4"
Overall dimension (Depth)
42 1/2"
Evacuation direction
Horizontal
Distance-center of the flue outlet to floor
44"
Distance-center of the flue outlet to side unit
14 5/8"
Door type
Single glass with cast iron frame
Door opening size (Width)
13 3/4"
Door opening size (Height)
10"
Glass type
Ceramic glass
Glass surface - W x H
12 1/2" x 10 1/8"
Baffle type
C-Cast or equivalent
Firebox size (Width)
18 3/4"
Firebox size (Height)
16 1/8"
Firebox size (Depth)
22 1/2"
Maximum log length
21"
Log positioning
Loading over width and over depth
Firebox lined with refractory bricks
Yes
Steel thickness-top
1/4"
Steel thickness-body
3/16"
Filter - Dimensions (Width x Height x Depth)
14" x 25" x 1"
Hot air plenum - Height (minimum - maximum)
24 1/2" x 28 5/8"
Air return plenum - Dimension (Width)
15 3/4"
Air return plenum - Dimension (Width x Depth)
24 3/4" x 15 3/4"
Approved as add-on to an existing furnace
Yes
Canadian Standard (safety)
CSA B366.1
USA Standard (safety)
UL 391
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Warranty
Limited lifetime
Shipping weight
731 lb (332 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Heating area(12)
1,000 - 2,500 ft²
Overall firebox volume
3.6 ft³
Maximum burn time(12)
10 h
Maximum input capacity (dry cordwood) (1)
310,000 BTU
Minimum overall heat output rate(7)
19,354 BTU/h (5.6 kW)
Maximum overall heat output rate(7)
47,052 BTU/h (13.8 kW)
Minimum average overall efficiency (HHV)(11)(10)
76.6 %
Maximum average overall efficiency (LHV)(11)(9)
82 %
Minimum delivered heat output rate(6)
13,297 BTU/h (3.9 kW)
Maximum delivered heat output rate(6)
42,234 BTU/h (12.4 kW)
Minimum average delivered efficiency (HHV)(8)(10)
60.7 %
Maximum average delivered efficiency (LHV)(8)(9)
65 %
Optimum efficiency(3)
83.2 %
Optimum heat transfer efficiency
81 %
Average particulate emission rate(4)(5)
0.095 lb/mmBTU (0.041 g/MJ)
Average CO(13)
8.78 lb/mmBTU (3.78 g/MJ)
Average electrical power consumption (2)
220 W | 360 W

Clearances

Canada
United States
Clearance - Back wall of the blower box24"24"Clearance - Side wall24"24"Clearance - Opposite side wall 6"6"Clearance - Base of the unit to ceiling**67"67"Clearance - Plenum | Ducts to the ceiling<6'=6" ; >6'=1"<6'=6" ; >6'=1"Clearance - Recommended distance for maintenance on option side 24"24"
Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product
Caddy PF01021

CADDY ADVANCED CR WOOD FURNACE

DIMENSION
W : 28 3/4"
D : 42 1/2"
H : 41 3/4"
Heating area
1,000 - 2,500 ft²
Maximum burn time
10 h
Caddy PF01015

CADDY WOOD FURNACE, COMBINED WOOD-ELECTRIC OR WOOD-OIL

DIMENSION
W : 32 1/4"
D : 52 7/8"
H : 49"
Heating area
1,000 - 2,500 ft²
Maximum burn time
15 h

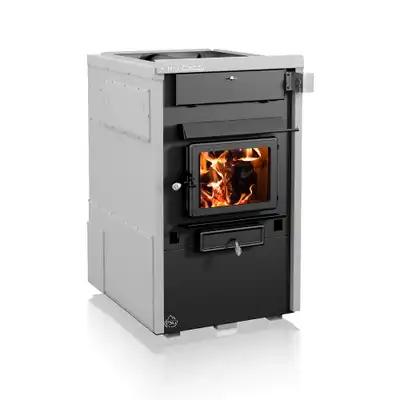

Caddy PF01102
