CaddySKU: PF01020-Bundle

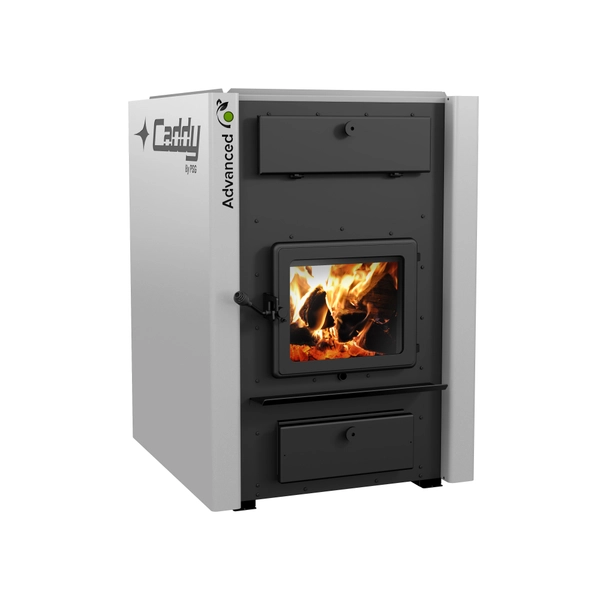

CADDY ADVANCED WOOD FURNACE

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

THE NEW GENERATION OF FURNACES Known for its exceptional performance, the Caddy Advanced is a furnace that’s innovative design (patent pending) is surpassed only by its simplicity of use. DISCOVER SELF-REGULATED COMBUSTION The self-regulated combustion of the Caddy Advanced promises constant heat, while requiring minimal effort on your part; just fill the furnace, adjust the temperature and enjoy the heat for hours! The system automatically adjusts the air supply so that combustion is optimized and synchronized with the thermostatic demand. * At start-up, the furnace injects additional combustion air for easy and quick ignition. * As the furnace goes into heating mode, it automatically adjusts the combustion air supply and the operation of the convection blower. When your home’s desired temperature is reached (thermostat setting), the furnace goes into energy saving mode, automatically reducing the combustion air and speed of the convection blower. * At the end of the combustion cycle, if the furnace needs to go back to heating mode (thermostat setting), additional combustion air is injected again to activate the combustion of the embers thus providing a hotter burn on the end of the combustion cycle. <h2>EASE OF USE 2</h2> Use the Caddy Advanced with confidence thanks to its intuitive operation and illustrated quick user guide. Equipped with a glass door allowing you to easily monitor the state of combustion, the furnace optimizes its combustion cycle: you will spend much less time taking care of it vs a conventional furnace (loading wood, adjusting the air, etc.). This optimization also ensures you substantial savings in firewood as well as increased comfort thanks to the production of constant heat throughout the combustion cycle. <h2>UNMATCHED PERFORMANCE 2</h2> Among the most efficient furnaces in terms of energy distribution, the Caddy Advanced has one of the lowest minimum burn rates in the industry. This means a load of wood burns longer, and therefore reduces the frequency of wood loading. Emissions on this unit are amongst the cleanest of the few EPA 2020 certified furnaces, and yet the Caddy Advanced is among the most energy efficient on the market. In addition, the new ECM motor blower option consumes 40% less electricity (and much quieter) than a standard PSC motor blower. <h2>QUICK AND FLEXIBLE INSTALLATION 2</h2> The Caddy Advanced is equipped with pre-wired electrical components that allow for quick and hassle-free installation. For more flexibility, you can install the filter supports on either sides and on top of the blower box to adapt the layout of the ventilation ducts to your space. In addition, the add-on configuration allows you to install the Caddy Advanced with your existing electric, oil or gas central heating system to take advantage of an alternative energy source. The Caddy Advanced includes a tool set and wall support, an ash lip, a thermostat, a moisture reader, a barometric damper and a fresh air intake adapter. **Alternate source of heat** Always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy Advanced comes in two different configurations: wood-only and wood add-on furnace. When installed as an add-on furnace, only a **SERIES configuration** is allowed only in **Canada** and the blower is not required. | Only **PARALLEL configuration** is allowed in the **USA**.

Full description
28 3/4"L X 42 1/2"P X 41 3/4"H
1,000 - 2,500 ft²
21"
10 h
Full specifications
Customize your productSubtotal: 0
Description

THE NEW GENERATION OF FURNACES
Known for its exceptional performance, the Caddy Advanced is a furnace that’s innovative design (patent pending) is surpassed only by its simplicity of use.

DISCOVER SELF-REGULATED COMBUSTION
The self-regulated combustion of the Caddy Advanced promises constant heat, while requiring minimal effort on your part; just fill the furnace, adjust the temperature and enjoy the heat for hours! The system automatically adjusts the air supply so that combustion is optimized and synchronized with the thermostatic demand.

  • At start-up, the furnace injects additional combustion air for easy and quick ignition.
  • As the furnace goes into heating mode, it automatically adjusts the combustion air supply and the operation of the convection blower. When your home’s desired temperature is reached (thermostat setting), the furnace goes into energy saving mode, automatically reducing the combustion air and speed of the convection blower.
  • At the end of the combustion cycle, if the furnace needs to go back to heating mode (thermostat setting), additional combustion air is injected again to activate the combustion of the embers thus providing a hotter burn on the end of the combustion cycle.

EASE OF USE 2


Use the Caddy Advanced with confidence thanks to its intuitive operation and illustrated quick user guide. Equipped with a glass door allowing you to easily monitor the state of combustion, the furnace optimizes its combustion cycle: you will spend much less time taking care of it vs a conventional furnace (loading wood, adjusting the air, etc.). This optimization also ensures you substantial savings in firewood as well as increased comfort thanks to the production of constant heat throughout the combustion cycle.

UNMATCHED PERFORMANCE 2


Among the most efficient furnaces in terms of energy distribution, the Caddy Advanced has one of the lowest minimum burn rates in the industry. This means a load of wood burns longer, and therefore reduces the frequency of wood loading. Emissions on this unit are amongst the cleanest of the few EPA 2020 certified furnaces, and yet the Caddy Advanced is among the most energy efficient on the market. In addition, the new ECM motor blower option consumes 40% less electricity (and much quieter) than a standard PSC motor blower.

QUICK AND FLEXIBLE INSTALLATION 2


The Caddy Advanced is equipped with pre-wired electrical components that allow for quick and hassle-free installation. For more flexibility, you can install the filter supports on either sides and on top of the blower box to adapt the layout of the ventilation ducts to your space. In addition, the add-on configuration allows you to install the Caddy Advanced with your existing electric, oil or gas central heating system to take advantage of an alternative energy source.

The Caddy Advanced includes a tool set and wall support, an ash lip, a thermostat, a moisture reader, a barometric damper and a fresh air intake adapter.

Alternate source of heat
Always have an alternate source of heat to ensure the comfort and safety of your family. The Caddy Advanced comes in two different configurations: wood-only and wood add-on furnace.
When installed as an add-on furnace, only a SERIES configuration is allowed only in Canada and the blower is not required. | Only PARALLEL configuration is allowed in the USA.

Specifications

General features

High-efficiency certified appliance
Yes, EPA 2020 approved
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Optional
Blower (hp | speed | CFM)
1/3 / 1 / 875
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Overall dimension (Width)
28 3/4"
Overall dimension (Height)
41 3/4"
Overall dimension (Depth)
42 1/2"
Evacuation direction
Horizontal
Distance-center of the flue outlet to floor
44"
Distance-center of the flue outlet to side unit
14 5/8"
Door type
Single glass with cast iron frame
Door opening size (Width)
13 3/4"
Door opening size (Height)
10"
Glass type
Ceramic glass
Glass surface - W x H
12 1/2" x 10 1/8"
Baffle type
C-Cast or equivalent
Firebox size (Width)
18 3/4"
Firebox size (Height)
16 1/8"
Firebox size (Depth)
22 1/2"
Maximum log length
21"
Log positioning
Loading over width and over depth
Firebox lined with refractory bricks
Yes
Steel thickness-top
1/4"
Steel thickness-body
3/16"
Filter - Dimensions (Width x Height x Depth)
14" x 25" x 1"
Hot air plenum - Height (minimum - maximum)
24 1/2" x 28 5/8"
Air return plenum - Dimension (Width)
15 3/4"
Air return plenum - Dimension (Width x Depth)
24 3/4" x 15 3/4"
Approved as add-on to an existing furnace
Yes
Canadian Standard (safety)
CSA B366.1
USA Standard (safety)
UL 391
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Warranty
Limited lifetime
Shipping weight
731 lb (332 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(12)
1,000 - 2,500 ft²
Overall firebox volume
3.6 ft³
Maximum burn time(12)
10 h
Maximum input capacity (dry cordwood) (1)
310,000 BTU
Minimum overall heat output rate(7)
19,354 BTU/h (5.6 kW)
Maximum overall heat output rate(7)
47,052 BTU/h (13.8 kW)
Minimum average overall efficiency (HHV)(11)(10)
76.6 %
Maximum average overall efficiency (LHV)(11)(9)
82 %
Minimum delivered heat output rate(6)
13,297 BTU/h (3.9 kW)
Maximum delivered heat output rate(6)
42,234 BTU/h (12.4 kW)
Minimum average delivered efficiency (HHV)(8)(10)
60.7 %
Maximum average delivered efficiency (LHV)(8)(9)
65 %
Optimum efficiency(3)
83.2 %
Optimum heat transfer efficiency
81 %
Average particulate emission rate(4)(5)
0.095 lb/mmBTU (0.041 g/MJ)
Average CO(13)
8.78 lb/mmBTU (3.78 g/MJ)
Average electrical power consumption (2)
220 W | 360 W

Clearances

Canada
United States
Clearance - Back wall of the blower box24"24"Clearance - Side wall24"24"Clearance - Opposite side wall 6"6"Clearance - Base of the unit to ceiling**67"67"Clearance - Plenum | Ducts to the ceiling<6'=6" ; >6'=1"<6'=6" ; >6'=1"Clearance - Recommended distance for maintenance on option side 24"24"
