Ventis
0
Ventis
VentisSKU: VB00023

HES140

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

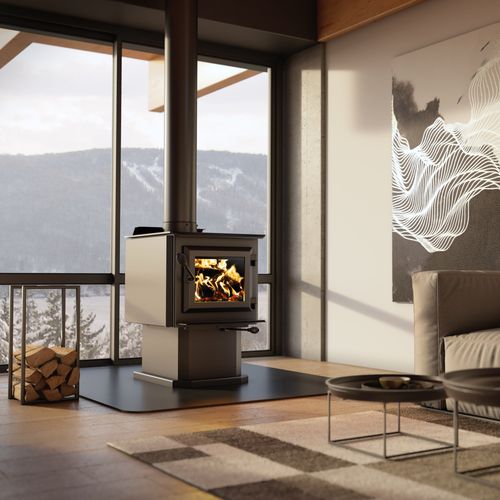

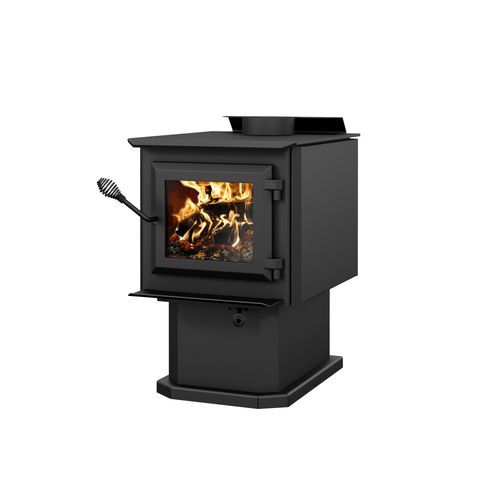

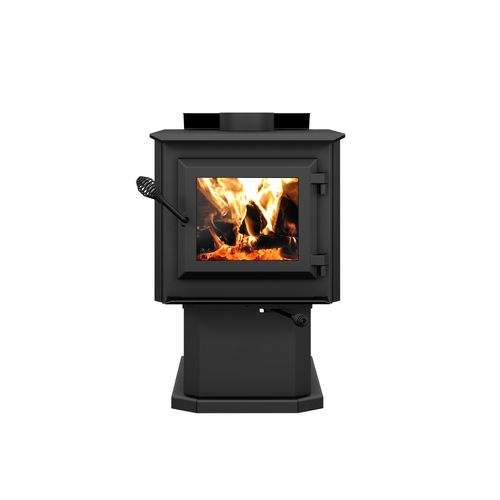

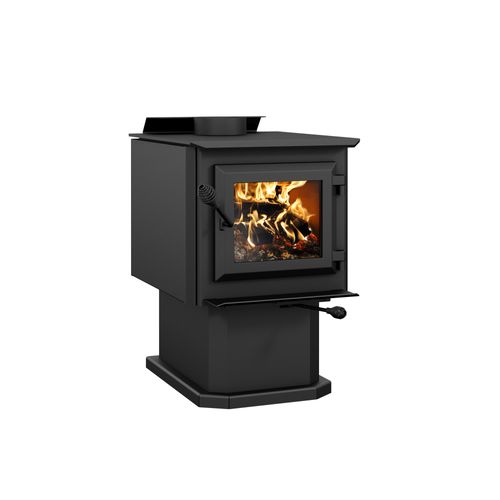

Small wood stove on pedestal

Full description
20''L X 29''P X 30 1/4''H
250 - 1,200 ft²
17"
1.8 g/h
Full specifications
Alain
ALAIN'S ADVICE
Description

▪Small wood stove on pedestal
▪EPA certified at only 1.8 g/h
▪Solidity and manufacturing quality
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪Top heat deflector and side panels
▪Stainless steel heat shield added to the firestop

[Tax Credit Qualification | Efficency Data Summary]

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
CAN/USA accredited laboratory
Overall dimension (Width)
20''
Overall dimension (Height)
30 1/4''
Overall dimension (Depth)
29''
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 5/8"
Distance-center of the flue outlet to side unit
10"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
12"
Door opening size (Height)
7 5/8"
Glass type
Ceramic glass
Glass surface - W x H
10 1/8" x 8 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
14 1/4"
Firebox size (Height)
11 3/4"
Firebox size (Depth)
19 1/8"
Log positioning
Loading over depth
Maximum log length
17"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 certified
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
282 lb (128 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
250 - 1,200 ft²
Overall firebox volume
1.8 ft³
EPA loading volume
1.55 ft³
Maximum burn time(9)
5 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h
Minimum overall heat output rate(4)(5)
12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4)(5)
26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
74 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
79 %
Optimum efficiency(1)(2)
80 %
Optimum heat transfer efficiency(8)
79 %
Average particulate emission rate(3)
1.8 g/h
Average CO(10)
74 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14"14"14"14"Clearance - Side wall12"12"12"12"Clearance - Corner11"11"11"11"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product
Ventis VB00023

HES140

DIMENSION
W : 20''
D : 29''
H : 30 1/4''
Recommended heating area
250 - 1,200 ft²
Maximum heat output-dry cordwood
45,000 BTU/h

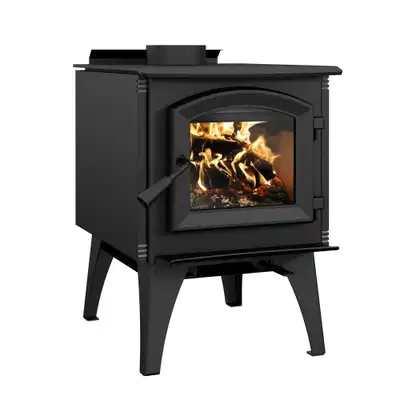

Enerzone EB00061

SOLUTION 1.4

DIMENSION
W : 20"
D : 27 7/8"
H : 28 7/8"
Recommended heating area
250 - 1,200 ft²
Maximum heat output-dry cordwood
45,000 BTU/h (13.19 kW)

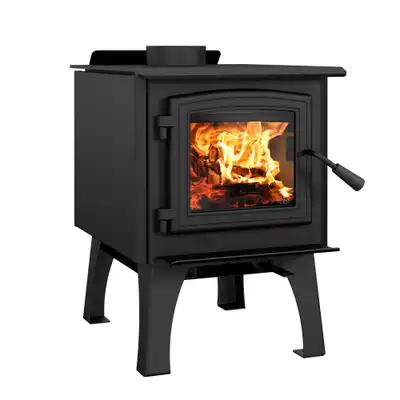

Osburn OB00950

Osburn 950

DIMENSION
W : 20 1/4"
D : 27 7/8"
H : 28 7/8"
Recommended heating area
250 - 1,200 ft²
Maximum heat output-dry cordwood
45,000 BTU/h (13.19 kW)

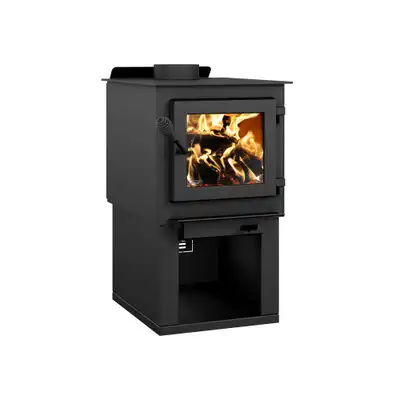

Drolet DB03215
