Ventis

VentisSKU: VB00020

HES350

Out of stock

Curbside Delivery.See Shipping & Delivery Policy

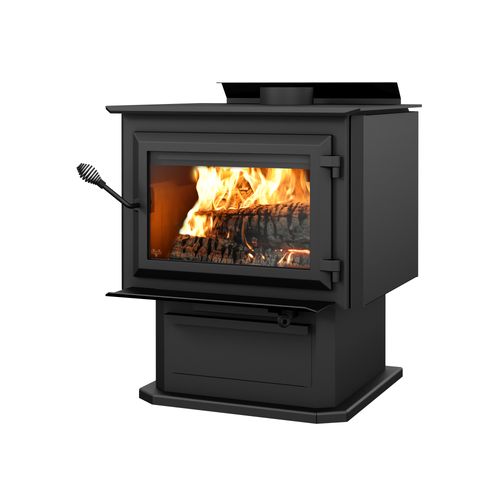

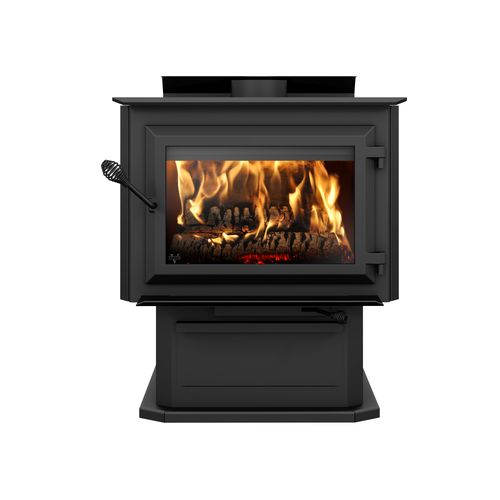

Extra-large wood stove on pedestal

Full description

Dimension28 3/4"L X 30 5/8"P X 34 3/4"H

Heating area1,000 - 2,700 ft²

Maximum log length22"

Average particulate emission rate1.6 g/h

Full specifications

title

Recommended for installation

These options allow you to get the most out of your appliance.

AC01000130 CFM BLOWER WITH THERMODISC

Out of stock

AC01281RIGID FIRESCREEN

Out of stock

AC013365"Ø FRESH AIR INTAKE KIT

Out of stock

AC03513HEAT OPERATED ROTATING FAN (180 CFM)

Out of stock

Subtotal:USD $0.00

Description

▪Extra-large wood stove on pedestal
▪EPA certified at only 1.6 g/h
▪Solidity and manufacturing quality
▪C-Cast heat shield added to the firestop
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Glass Airwash system for a cleaner view of the flames
▪Cast iron door
▪Top heat deflector and side panels

Specifications

General features

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

CAN/USA accredited laboratory

Overall dimension (Width)

28 3/4"

Overall dimension (Height)

34 3/4"

Overall dimension (Depth)

30 5/8"

Premium quality blower included (CFM)

Optional

Combustion technology

Non-catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

8 1/4"

Distance-center of the flue outlet to side unit

14 3/8"

Recommended chimney diameter

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height

12'

Door type

Single, glass with cast iron frame

Door opening size (Width)

19"

Door opening size (Height)

9 1/4"

Glass type

Ceramic glass

Glass surface - W x H

18 3/8" x 11 1/2"

Steel thickness-body

3/16"

Steel thickness-top

5/16"

Firebox size (Width)

22 7/8"

Firebox size (Height)

12 3/4"

Firebox size (Depth)

20 1/8"

Log positioning

Loading over width and over depth

Maximum log length

22"

Firebox lined with refractory bricks

Yes

Baffle type

High quality vermiculite

High-efficiency certified appliance

Yes, EPA 2020 certified

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S627

USA Standard (safety)

UL 1482, UL 737

Warranty

Limited lifetime

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Heating area(9)

1,000 - 2,700 ft²

Overall firebox volume

3.5 ft³

EPA loading volume

2.88 ft³

Maximum burn time(9)

10 h

Maximum heat output-dry cordwood(4)

110,000 BTU/h

Minimum overall heat output rate(4)(5)

17,200 BTU/h (5.0 kW)

Maximum overall heat output rate(4)(5)

57,800 BTU/h (16.9 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

71 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

76 %

Optimum efficiency(1)(2)

77 %

Optimum heat transfer efficiency(8)

75 %

Average particulate emission rate(3)

1.6 g/h

Average CO(10)

73 g/h

Clearances

Canada

United States

Single wall pipe

Double wall pipe

Single wall pipe

Double wall pipe

Clearance - Back wall13 1/4"7"13"7"Clearance - Side wall14"14"14"14"Clearance - Corner7 1/4"7"7 1/4"7"Clearance - Base of the unit to ceiling**84"84"84"84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood stove manual | Safety notifications & general information

Appliance dimensions

Installation & Operation Requirements
