Osburn
0
Osburn
OsburnSKU: OB02032-Bundle

Matrix with blower

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

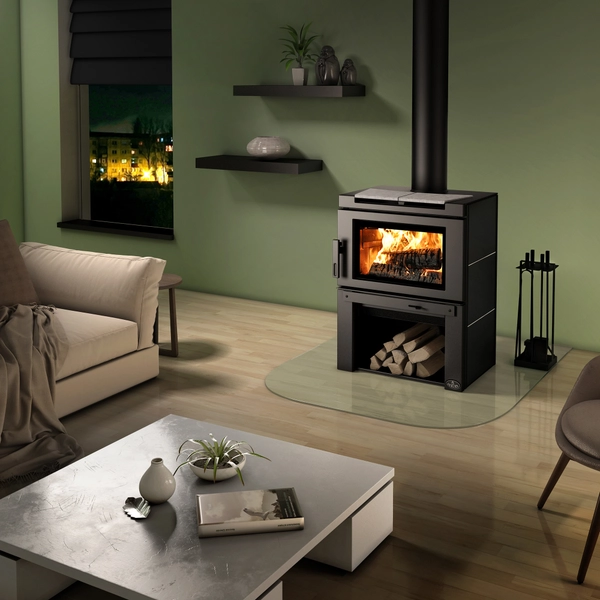

With the same sleek, modern style and vastly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home.

Full description
27 1/8"L X 25"P X 36 7/8"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
Alain
ALAIN'S ADVICE
Customize your productSubtotal: 0
Description

With the same sleek, modern style and vastly improved performance, the Matrix wood burning stove will certainly bring a European touch to your home. Let the Matrix wood stove provided you the warmth, safety and coziness needed during these cold winters

You can now personalize your device with the steel or soapstone top and side panel options from a local Quebec City mine, reminding us of the richness of our natural resources. Logs will easily fit under the large firebox, making the Matrix a practical and stylish heater. The Matrix is equipped with a 130 CFM fan to ensure optimal heat distribution. Enjoy the comfort of winter more than ever before!

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
27 1/8"
Overall dimension (Height)
36 7/8"
Overall dimension (Depth)
25"
Premium quality blower included (CFM)
130 CFM included
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 3/8"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
8 3/4"
Glass type
Ceramic glass
Glass surface - W x H
19 5/8" x 11 7/8"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 1/2"
Log positioning
Loading over
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
506 lb (230 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22.0 kW)
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14 1/2"14 1/2"14 1/2"14 1/2"Clearance - Side wall17"17"17"17"Clearance - Corner10"10"10"10"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.
