EnerzoneSKU: EB00060-Bundle

SOLUTION 3.3

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

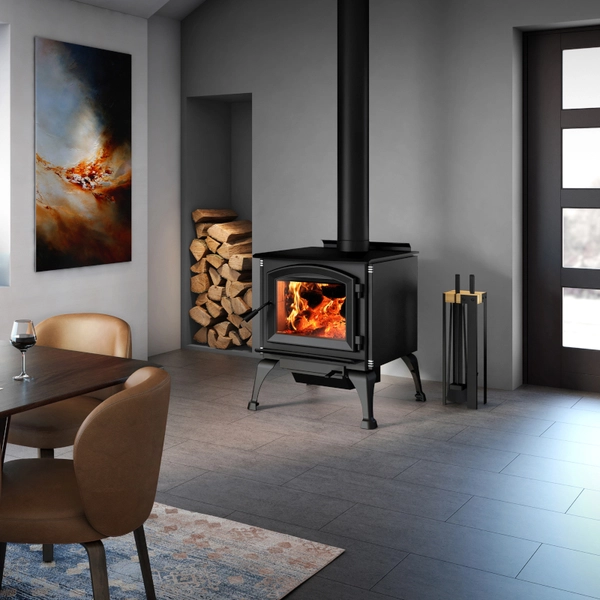

Once again, Enerzone designs and manufactures a superior quality heater to provide you with the independence and security you and your family are looking for.

Full description
24 1/4"L X 30 7/8"P X 33 3/8"H
900 - 2,300 ft²
20"
0.95 g/h
Full specifications
Alain
ALAIN'S ADVICE
Customize your productSubtotal: 0
Description

Once again, Enerzone designs and manufactures a superior quality heater to provide you with the independence and security you and your family are looking for. This brand new large ecological model will be soothing to the soul, especially in times of power failure, during cold seasons.

The Solution 3.3 is equipped with side panels fitted with delicate engraved grooves and an arched cast iron door which beautifully highlights the flames. Choose from our pedestal or three leg models, black or brushed nickel, traditional, round or straight. You can also upgrade your appliance with a blower with thermodisc and a rigid firescreen for more comfort.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
24 1/4"
Overall dimension (Height)
33 3/8"
Overall dimension (Depth)
30 7/8"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 5/8"
Distance-center of the flue outlet to side unit
12 1/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
16"
Door opening size (Height)
12"
Glass type
Ceramic glass
Glass surface - W x H
14 5/8" x 11 3/4"
Steel thickness-body
3/16"
Steel thickness-top
3/8"
Firebox size (Width)
19"
Firebox size (Height)
14 1/8"
Firebox size (Depth)
21"
Log positioning
Loading over depth
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
472 lb (214 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
900 - 2,300 ft²
Overall firebox volume
3.3 ft³
EPA loading volume
2.67 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
90,000 BTU/h (26.4 kW)
Minimum overall heat output rate(4)(5)
15,841 BTU/h (4.64 kW)
Maximum overall heat output rate(4)(5)
57,041 BTU/h (16.72 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71.1 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76.6 %
Optimum efficiency(1)(2)
78 %
Optimum heat transfer efficiency(8)
74 %
Average particulate emission rate(3)
0.95 g/h
Average CO(10)
61.3 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14 1/2"14 1/2"14 1/2"14 1/2"Clearance - Side wall20"20"20"20"Clearance - Corner12"12"12"12"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

Similar Products

Compare the features of this appliance with similar products
Current product

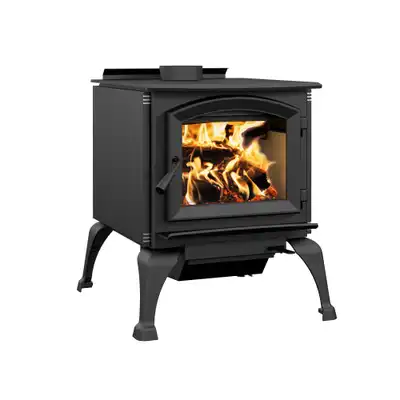

Enerzone EB00060

SOLUTION 3.3

DIMENSION
W : 24 1/4"
D : 30 7/8"
H : 33 3/8"
Recommended heating area
900 - 2,300 ft²
Maximum heat output-dry cordwood
90,000 BTU/h (26.4 kW)

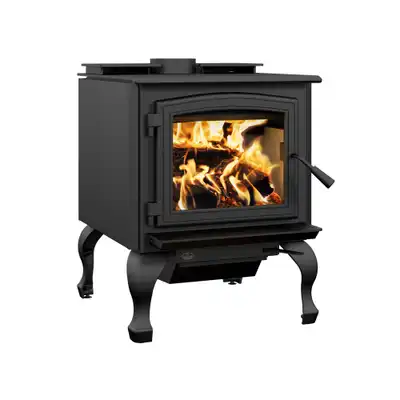

Osburn OB03300

Osburn 3300

DIMENSION
W : 24 1/4"
D : 30 1/2"
H : 34"
Recommended heating area
900 - 2,300 ft²
Maximum heat output-dry cordwood
90,000 BTU/h (26.4 kW)
Drolet DB03073

LEGEND III - WITH BLOWER

DIMENSION
W : 24 1/4"
D : 32 3/8"
H : 32 5/8"
Recommended heating area
900 - 2,300 ft²
Maximum heat output-dry cordwood
90,000 BTU/h (26.4 kW)
Drolet DB03052

MYRIAD III - WITH BLOWER

DIMENSION
W : 24 1/4"
D : 32 1/8"
H : 34 3/8"
Recommended heating area
900 - 2,300 ft²
Maximum heat output-dry cordwood
90,000 BTU/h (26.4 kW)
