Enerzone
0
Enerzone
EnerzoneSKU: EB00045-Bundle

HARMONY 2.3

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

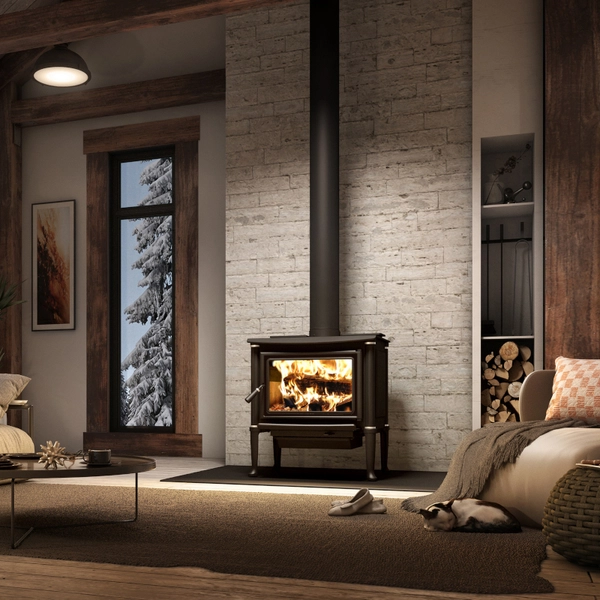

Holder of an industrial design protection, the Harmony leaves no one indifferent with its look reminiscent of cast iron appliances, while offering the many advantages of wood stoves made of steel.

Full description
25 5/8"L X 25 3/4"P X 30 1/8"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
Alain
ALAIN'S ADVICE
Customize your productSubtotal: 0
Description

Holder of an industrial design protection, the Harmony leaves no one indifferent with its look reminiscent of cast iron appliances, while offering the many advantages of wood stoves made of steel. The detail of the unique Fluted Roman Doric columns provides great elegance. Meeting EPA requirements with emissions below 2.3 g/h, the Harmony is an eco-friendly appliance that complies with the most stringent North American Standard.

Available with a refined black or silver door trim, this unit becomes a serious choice to consider. Installation in a mobile home is allowed and you can add an air supply to the combustion to meet the requirements of domestic energy sources. Its 2.3 cubic feet combustion chamber makes the Harmony a generous source of heat for your home that will certainly meet your highest expectations.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
25 5/8"
Overall dimension (Height)
30 1/8"
Overall dimension (Depth)
25 3/4"
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 1/2"
Distance-center of the flue outlet to side unit
12 7/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16 1/2" x 10 1/8"
Steel thickness-body
3/16"
Steel thickness-top
3/8"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
17 1/4"
Log positioning
Loading over width
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
435 lb (198 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall14 1/2"14 1/2"14 1/2"14 1/2"Clearance - Side wall22"22"22"22"Clearance - Corner12"12"12"12"Clearance - Base of the unit to ceiling**84"84"84"84"
