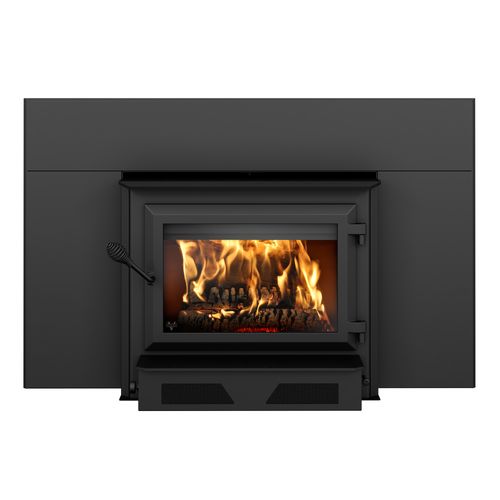

Ventis
0
Ventis
VentisSKU: VB00021-Bundle

HEI350

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Extra-large size wood insert

Full description
30 1/2"L X 29"P X 24 7/8"H
1,000 - 2,700 ft²
22"
1.6 g/h
Full specifications
INSERT CONFIGURATOR
Customize your productSubtotal: 0
Description

▪Extra-large size wood insert
▪EPA certified at only 1.6 g/h
▪Solidity and manufacturing quality
▪C-Cast heat shield added to the firestop
▪Non-catalytic combustion technology
▪Installation authorized on the Island of Montreal
▪Cast iron door
▪144 CFM blower

Required option: regular faceplate (VBA1557) or large faceplate (VBA1558)

Specifications

General features

Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12"
Overall dimension (Width)
30 1/2"
Overall dimension (Height)
24 7/8"
Overall dimension (Depth)
29"
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
9 1/4"
Glass type
Ceramic glass
Glass surface - W x H
18 3/8" x 11 1/2"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
22 7/8"
Firebox size (Height)
12 7/8"
Firebox size (Depth)
20 1/8"
Maximum log length
22"
Log positioning
Loading over width and over depth
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
31"
Minimum fireplace opening (Height)
26 1/4"
Minimum fireplace opening (Depth)
18 3/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
lb (kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit19"19"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"Clearance - Floor protection in front of the unit (from door opening)16"16"
