Heaters
/
Wood Inserts
/DB03128K
Drolet
DroletSKU: DB03128K

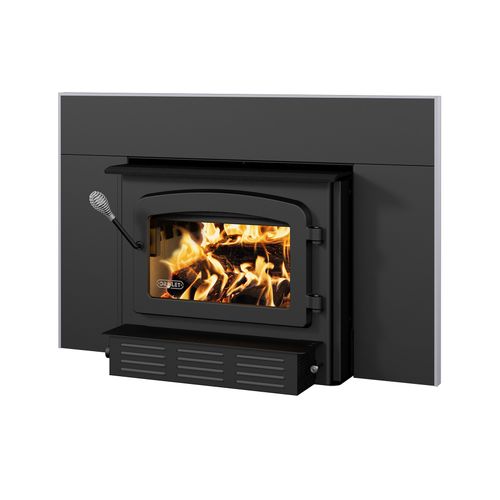

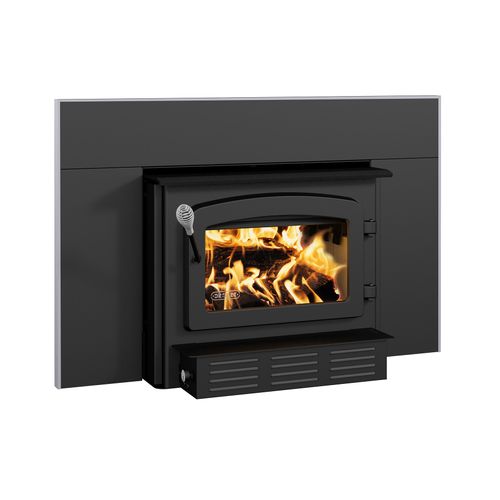

ESCAPE 1800-I - WITH TRIO 35'

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert!

Full description
28 3/8"L X 26 3/8"P X 23 1/8"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
Alain
ALAIN'S ADVICE

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Subtotal:CAD $0.00

Accessories

FREE DELIVERY ON ORDERS OVER $100*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

Ideal for heating up to 2,100 ft², the Escape 1800 is the ultimate versatile wood insert! With only 1.54 g/h of particulate emissions, this non-catalytic appliance gives off up to 75,000 BTU/h. The Escape 1800 is the perfect choice to update your masonry fireplace and make it efficient!

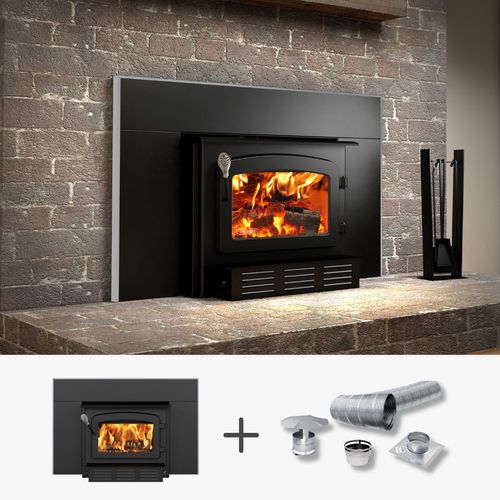

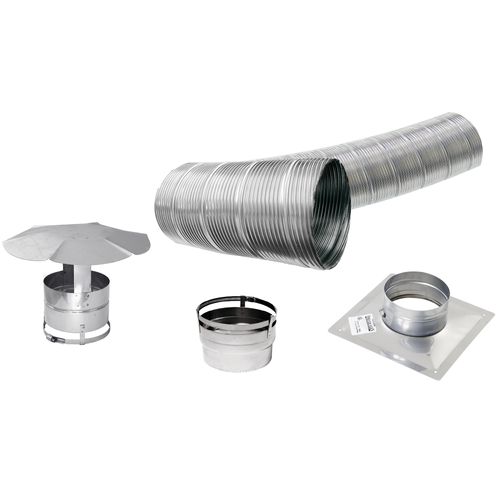

Included: 6" liner kit (35' Vortex flexible stainless steel liner, connector, 13" x 13" top plate, chimney cap with no screen), 32" x 50" faceplate with brushed nickel trim, blower, ceramic glass, ash lip, air damper

▪Burn time up to 8 hours
▪Up to 20" logs
▪2.4 ft³ firebox
▪Robust 5/16" steel reinforced with a stainless steel heat shield
▪EPA certified
▪Proudly made in Canada
▪Limited lifetime warranty
▪ This model qualifies for the US tax credit

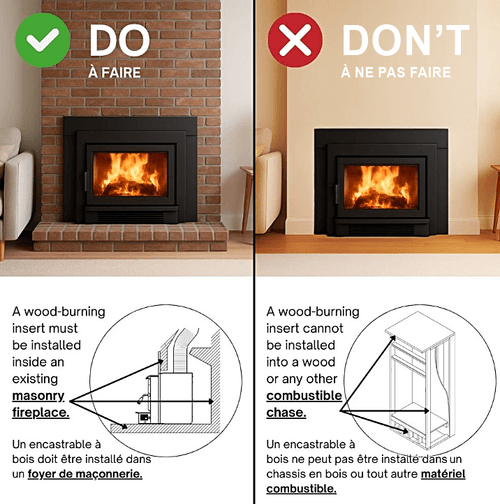

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Premium quality blower included (CFM)
144 PCM inclus
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes

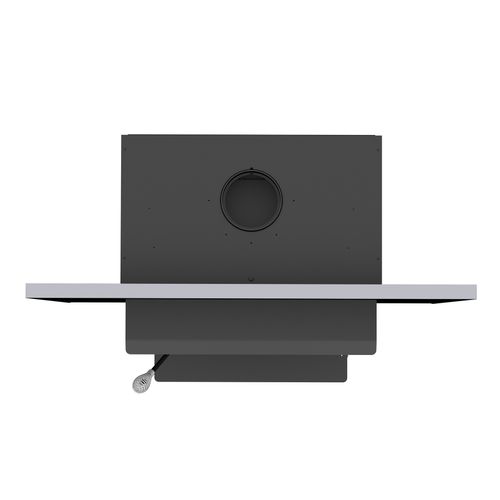

Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 7/8"
Distance-center of the flue outlet to side unit
13 1/2"
Recommended chimney diameter
6"
Type of chimney
Liner - ULC-S635, CAN/ULC-S640, UL1777
Minimum chimney height
12'
Overall dimension (Width)
28 3/8"
Overall dimension (Height)
23 1/8"
Overall dimension (Depth)
26 3/8"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 1/2"
Maximum log length
20"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Depth)
15 3/4"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA / ASTM WK47329
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
500 lb (227 kg)
Approved as add-on to an existing furnace
No

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22.0 kW)
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Clearance
Single wall pipe
Double wall pipe
Base of the unit to ceiling
18"
84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation and user's manual
Appliance dimensions
