Century Heating
Century HeatingSKU: CB00022

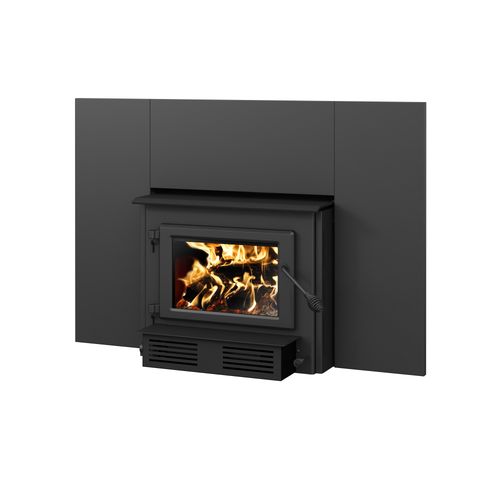

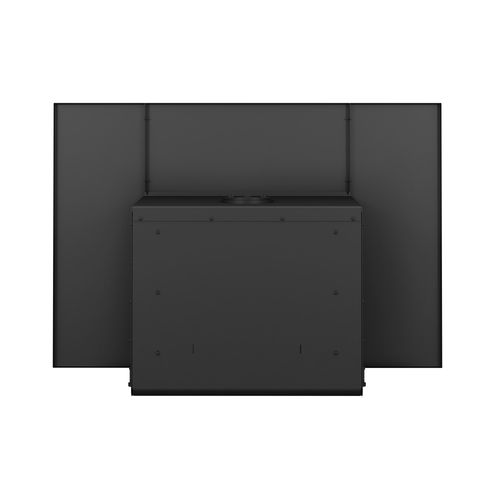

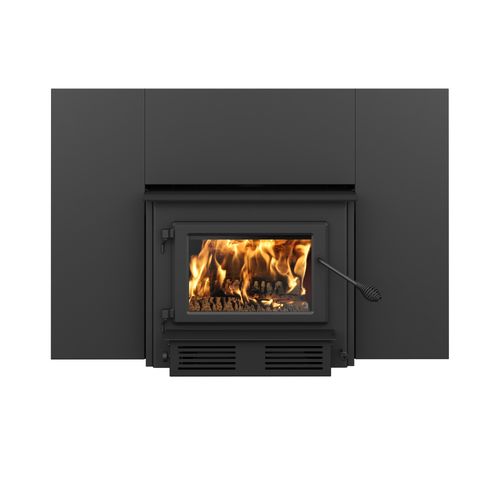

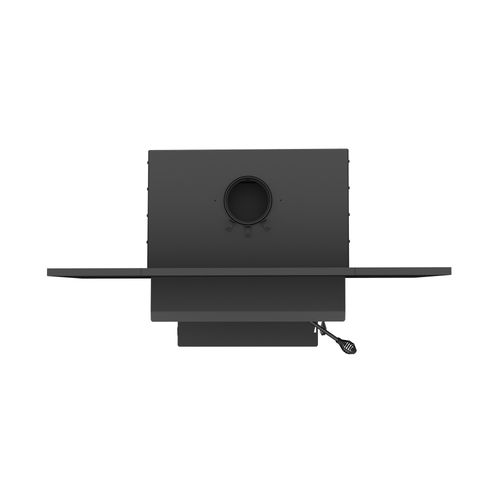

CW2900

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Large size firebox

Full description
28 1/2"L X 26 1/2"P X 22 5/8"H
1,700 - 2,900 ft²
20" (16" recommended)
2.3 g/h
Full specifications
INSERT CONFIGURATOR
Description

  • Large size firebox
  • Spring faceplate adjustment system which easily adapts to any type of hearth
  • Reinforced appliance top with a stainless steel heat shield
  • Cast iron door and ceramic glass
  • EPA certified at 2.3 g/h
  • Non-catalytic combustion system
  • Designed and made in Canada
  • Included: 34" x 50" faceplate, air intake damper and 144 CFM blower with thermodisc

Specifications

General features

Alcove installation approved
No
Premium quality blower included (CFM)
144 CFM included
Certified according to applicable standards
CAN/USA accredited laboratory
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12"
Overall dimension (Width)
28 1/2"
Overall dimension (Height)
22 5/8"
Overall dimension (Depth)
26 1/2"
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
14 7/8" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
1/4"
Firebox size (Width)
21"
Firebox size (Height)
11 7/8"
Firebox size (Depth)
16 1/2"
Maximum log length
20" (16" recommended)
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
Minimum fireplace opening (Width)
28 7/8"
Minimum fireplace opening (Height)
23 3/8"
Minimum fireplace opening (Depth)
15 3/4"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S628
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited 5 years
Shipping weight
415 lb (188 kg)

Appliance performance

Fuel type
Dry cordwood
Heating area(9)
1,700 - 2,900 ft²
Overall firebox volume
2.4 ft³s
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Canada
United States
Clearance - Combustible side wall to unit16"16"Clearance - Combustible side mantle to unit9"9"Clearance - Combustible top mantle to unit27"27"Clearance - Top of the unit to a 12" combustible mantle shelf27"27"Clearance - Base of the unit to ceiling**84"84"Clearance - Floor protection in front of the unit (from door opening)16"18"
