Englander

EnglanderSKU: ESW0001

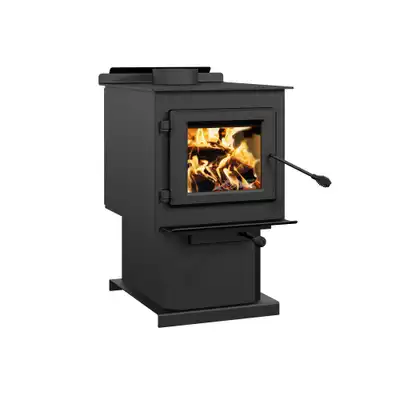

BLUE RIDGE 100

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

High efficiency 1.8 ft³ firebox, ideal for tight spaces.

Full description

Dimension18 1/2"L X 29"P X 30 5/8"H

Recommended heating area250 - 1,200 ft²

Maximum log length17" (16" recommanded)

Average particulate emission rate1.8 g/h

Full specifications

ALAIN'S ADVICE

Recommended for installation

These options allow you to get the most out of your appliance.

AC013365"Ø FRESH AIR INTAKE KIT

Out of stock

AC02050BLOWER WITH VARIABLE SPEED CONTROL (100 CFM)

Out of stock

AC02055QUICK CONNECT THERMODISC

Out of stock

AC020904' INSULATED FLEX PIPE FOR 5"Ø FRESH AIR INTAKE

Out of stock

AC013495"Ø FRESH AIR INTAKE REGISTER WITH AIRTIGHT DAMPER

Out of stock

Subtotal:CAD $0.00

Description

High efficiency 1.8 ft³ firebox, ideal for tight spaces

Up to 5 hours burn time

Steel top reinforced with a stainless steel heat shield

Cast iron door and ceramic glass

EPA certified

Proudly made in USA

Non-catalytic combustion system

Certified for mobile home and alcove installation

Qualifies for the 30% US tax credit

Included: pedestal, ash lip, air intake damper & rear air deflector

Specifications

General features

Alcove installation approved

Yes

Mobile home approved

Yes, with fresh air intake

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Overall dimension (Width)

18 1/2"

Overall dimension (Height)

30 5/8"

Overall dimension (Depth)

29"

Premium quality blower included (CFM)

Optional

Combustion technology

Non catalytic

Stainless-steel secondary-air system

Yes

Flue outlet diameter

Distance-center of the flue outlet to back unit

6 5/8"

Distance-center of the flue outlet to side unit

9 1/4"

Recommended chimney diameter

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Minimum chimney height

12'

Door type

Single, glass with cast iron frame

Door opening size (Width)

12"

Door opening size (Height)

7 5/8"

Glass type

Ceramic glass

Glass surface - W x H

9 5/8" x 8 1/8"

Steel thickness-body

3/16"

Steel thickness-top

1/4"

Firebox size (Width)

14 1/4"

Firebox size (Height)

11 3/4"

Firebox size (Depth)

19 3/8"

Log positioning

Loading over depth

Maximum log length

17" (16" recommanded)

Firebox lined with refractory bricks

Yes

Baffle type

High quality vermiculite

High-efficiency certified appliance

Yes, EPA 2020 approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S627

USA Standard (safety)

1482, UL 737

Warranty

5 years limited

Shipping weight

283 lb (128 kg)

Appliance performance

Fuel type

Dry cordwood (16" recommended)

Recommended heating area(9)

250 - 1,200 ft²

Overall firebox volume

1.8 ft³

EPA loading volume

1.55 ft³

Maximum burn time(9)

5 h

Maximum heat output-dry cordwood(4)

45,000 BTU/h (13.2 kW)

Minimum overall heat output rate(4)(5)

12,124 BTU/h (3.55 kW)

Maximum overall heat output rate(4)(5)

26,700 BTU/h (7.83 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

74 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

79 %

Optimum efficiency(1)(2)

80 %

Optimum heat transfer efficiency(8)

79 %

Average particulate emission rate(3)

1.8 g/h

Average CO(10)

74 g/h

Clearances

Clearance

Single wall pipe

Double wall pipe

Back wall

14"

Corner

11"

Side wall

18"

Base of the unit to ceiling

84"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Wood stove manual | Safety notifications & general information

Appliance dimensions

Installation & Operation Requirements

Some questions? We can help you! Contact-us

Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.

BLUE RIDGE 100

Recommended for installation

Similar Products

Englander ESW0001

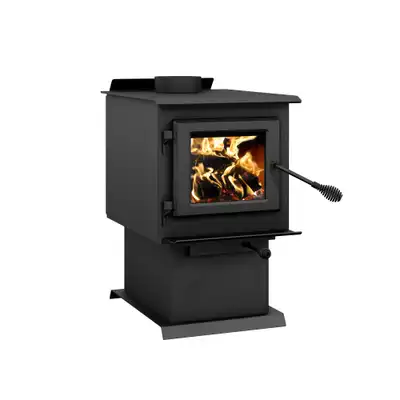

Century Heating CB00025

Drolet DB03215

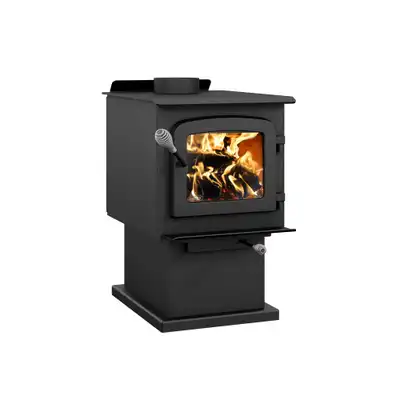

Drolet DB03182
