Enerzone
0
Enerzone
EnerzoneSKU: EB00053

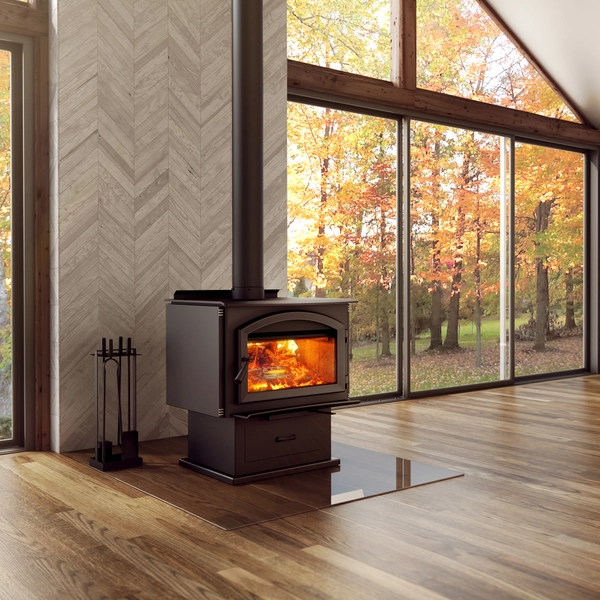

SOLUTION 3.5 WITH BLOWER

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Combine refinement and performance at all times, for personalized use and an ever-more accessible heating experience with the all-new Solution 3.5.

Full description
28 1/8"L X 33 1/2"P X 34 1/8"H
1,000 - 2,700 ft²
22"
1.6 g/h
Full specifications
Alain
ALAIN'S ADVICE
Description

Combine refinement and performance at all times, for personalized use and an ever-more accessible heating experience with the all-new Solution 3.5. This fully redesigned model will seduce you with its low ecological footprint at only 1.6 g/h, a rating well below the upcoming EPA requirements.

This very large non-catalytic unit features sleek, elegant lines: slightly curved top, side panels with delicate engraved grooves and less massive arched iron door leaving plenty of room for the movements of the flames. Make sense of your home, give yourself the cozy nest you dream of!

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
28 1/8"
Overall dimension (Height)
34 1/8"
Overall dimension (Depth)
33 1/2"
Premium quality blower included (CFM)
130 CFM included
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
8 1/8"
Distance-center of the flue outlet to side unit
14 1/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
19"
Door opening size (Height)
9 7/8"
Glass type
Ceramic glass
Glass surface - W x H
18 3/4" x 12 1/2"
Steel thickness-body
3/16"
Steel thickness-top
3/8"
Firebox size (Width)
22 7/8"
Firebox size (Height)
12 7/8"
Firebox size (Depth)
20 1/8"
Log positioning
Loading over width and over depth
Maximum log length
22"
Firebox lined with refractory bricks
Yes
Baffle type
C-Cast or equivalent
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
520 lb (236 kg)

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
1,000 - 2,700 ft²
Overall firebox volume
3.5 ft³
EPA loading volume
2.88 ft³
Maximum burn time(9)
10 h
Maximum heat output-dry cordwood(4)
110,000 BTU/h (32.2 kW)
Minimum overall heat output rate(4)(5)
17,200 BTU/h (5.0 kW)
Maximum overall heat output rate(4)(5)
57,800 BTU/h (16.9 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
71 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
76 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.6 g/h
Average CO(10)
73 g/h

Clearances

Canada
United States
Single wall pipe
Double wall pipe
Single wall pipe
Double wall pipe
Clearance - Back wall13 1/4"7"13"7"Clearance - Side wall14"14"14"14"Clearance - Corner7 1/4"7"7 1/4"7"Clearance - Base of the unit to ceiling**84"84"84"84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Some questions? We can help you! Contact-us
Frequently Asked Questions

Our stove and fireplace expert Alain answers your questions about this product.
