Drolet
DroletSKU: DB04900

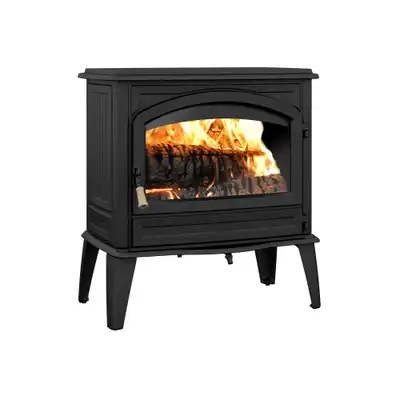

CAPE TOWN 1800 - CAST IRON

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

Entirely made of cast iron, the Cape Town 1800 is ideal for heating up to 2000 ft² with its 75,000 BTU/h of maximum power.

Full description
30 3/4"L X 22 5/8"P X 32 5/8"H
500 - 2,000 ft²
21"
1.91 g/h
Full specifications
Alain
ALAIN'S ADVICE

Recommended for installation

These options allow you to get the most out of your appliance.

Out of stock

Out of stock

Subtotal:CAD $0.00

Accessories

FREE DELIVERY ON ORDERS OVER $100*.BEST DEALS OF THE MONTH ON OUR PRODUCTSEXPERT TEAM READY TO HELP
Description

Entirely made of cast iron, the Cape Town 1800 is ideal for heating up to 2000 ft² with its 75,000 BTU/h of maximum power. Certified at 1.81 g/h, this non-catalytic unit is the only Drolet model to offer a flue outlet at the back and on the top of the stove. The Cape Town 1800 has a large viewing area as well as a full width andiron to hold logs during loading. Its classic design and distinguished cast iron finish give it all its charm.

Included: ash drawer, ceramic glass, ash lip, broad-spectrum air damper

▪ Up to 8 hours burn time
▪ Up to 21" logs
▪ 2 ft³ firebox
▪ EPA certified
▪ Made in Belgium
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation
▪ This model qualifies for the US tax credit

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Specifications

General features

Alcove installation approved
Yes
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
30 3/4"
Overall dimension (Height)
32 5/8"
Overall dimension (Depth)
22 5/8"
Premium quality blower included (CFM)
No
Combustion technology
Non-catalytic
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
4 1/8"
Distance-center of the flue outlet to side unit
15 3/8"
Distance-center of the flue outlet to floor
26 3/4"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
22"
Door opening size (Height)
9 1/2"
Glass type
Ceramic glass
Glass surface - W x H
20 1/2" x 12"
Firebox size (Width)
21 7/8"
Firebox size (Height)
9 1/2"
Firebox size (Depth)
13 1/4"
Log positioning
Loading over width
Maximum log length
21"
Firebox lined with refractory bricks
No
Baffle type
High quality vermiculite
High-efficiency certified appliance
CSA B415.1-10 only approved for Canada
Canadian Standard (emissions)
CSA B415.1-10
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482
Warranty
Limited lifetime
Shipping weight
545 lb (247 kg)
Approved as add-on to an existing furnace
No
Moulded refractory panels
Yes

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,000 ft²
Overall firebox volume
2.0 ft³
EPA loading volume
1.55 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
51,600 BTU/h (15.13 kW)
Minimum overall heat output rate(4)(5)
13,927 BTU/h (4.08 kW)
Maximum overall heat output rate(4)(5)
51,616 BTU/h (15.13 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
76 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
82 %
Optimum efficiency(1)(2)
84.5 %
Optimum heat transfer efficiency(8)
77 %
Average particulate emission rate(3)
1.91 g/h
Average CO(10)
79 g/h

Clearances

Clearance
Single wall pipe
Double wall pipe
Back wall
18"
10"
Corner
16"
8"
Side wall
16"
16"
Base of the unit to ceiling
84"
84"
Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation and user's manual
