Capable of heating an area of ​​up to 2 100 ft², the Heritage offers a maximum heat output of 75,000 BTU/h.

Full description
26"L X 32"P X 32 3/4"H
500 - 2,100 ft²
20"
2.3 g/h
Full specifications
Alain
ALAIN'S ADVICE
Description

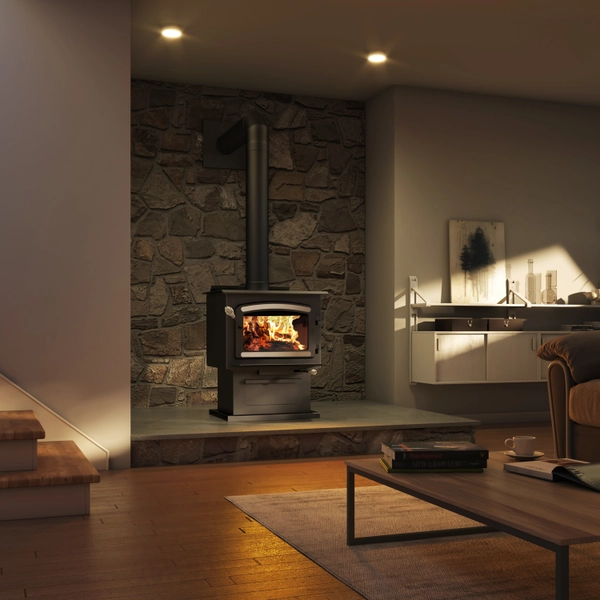

Capable of heating an area of ​​up to 2 100 ft², the Heritage offers a maximum heat output of 75,000 BTU/h. Robust and powerful, this non-catalytic unit goes beyond environmental standards with its low particle emission rate of 2.3 g/h. Among the largest stoves available on the market, the Heritage is equipped with a large glass surface to fully enjoy the fire.

**Included:**pedestal with ash drawer, blower, air deflector, ceramic glass, ash lip, air damper

▪ Up to 8 hours burn time
▪ Up to 20" logs
▪ 2.4 ft³ firebox
▪ Heavy duty 5/16" steel top reinforced with a stainless steel heat shield
▪ EPA certified
▪ Proudly made in Canada
▪ Limited lifetime warranty
▪ Certified for mobile home and alcove installation

Any installation must be done according to the data and drawings detailed in the owner’s manual.

Manufacturer promotions to claim
Get $100 cash back with the purchase of an Heritage (DB03190) wood stove. Valid on purchases made between October 1-31, 2023.

How to claim?

  1. Purchase the promotional unit.
  2. Go to the Promotions section of the Drolet website http://bit.ly/46usHv3
  3. Fill out the form to claim your promotion.

Specifications

General features

Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Overall dimension (Width)
26"
Overall dimension (Height)
32 3/4"
Overall dimension (Depth)
32"
Premium quality blower included (CFM)
100 CFM included
Combustion technology
Non-catalytic
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
11 1/2"
Distance-center of the flue outlet to side unit
13"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
11 3/4"
Firebox size (Depth)
16 3/4"
Log positioning
Loading over width
Maximum log length
20"
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Warranty
Limited lifetime
Shipping weight
367 lb (166 kg)
Approved as add-on to an existing furnace
No

Appliance performance

Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
1.95 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5)
14,200 BTU/h (4.16 kW)
Maximum overall heat output rate(4)(5)
44,500 BTU/h (13.04 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
72 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
77 %
Optimum efficiency(1)(2)
79 %
Optimum heat transfer efficiency(8)
76 %
Average particulate emission rate(3)
2.3 g/h
Average CO(10)
69 g/h

Clearances

Clearance
Single wall pipe
Double wall pipe
Back wall
14 1/2"
6"
Corner
12"
12"
Side wall
22"
22"
Base of the unit to ceiling
84"
84"
