Englander
0
Englander
EnglanderSKU: ESW0022

25-CAB80S

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

This cabinet-style pellet stove is built with both form and function in mind. It is powered by an auto-start igniter and our proven, user-friendly control board for quick and easy operation – just press ON and choose your desired heat setting. The auto-ignition system ensures that the stove will safely light, and the control system takes over to ensure a safe, efficient burn. A large, 80-lb. capacity hopper holds enough pellet fuel for overnight burns (as well as reduced loading on your part), and the large viewing glass with air wash system gives a great view of the fire. This stove heats up to 2,000 ft², and a fresh air hook-up kit is included at no charge. A stylish nickel cool-touch handle accents the stately, beveled cast iron door. The stove is mobile home approved. • Made in USA • Heats up to 2,000 ft² • Hopper holds 80 lb of wood pellets • Up to 36h burn time per filling • Mobile home approved • Outside air kit included

Full description

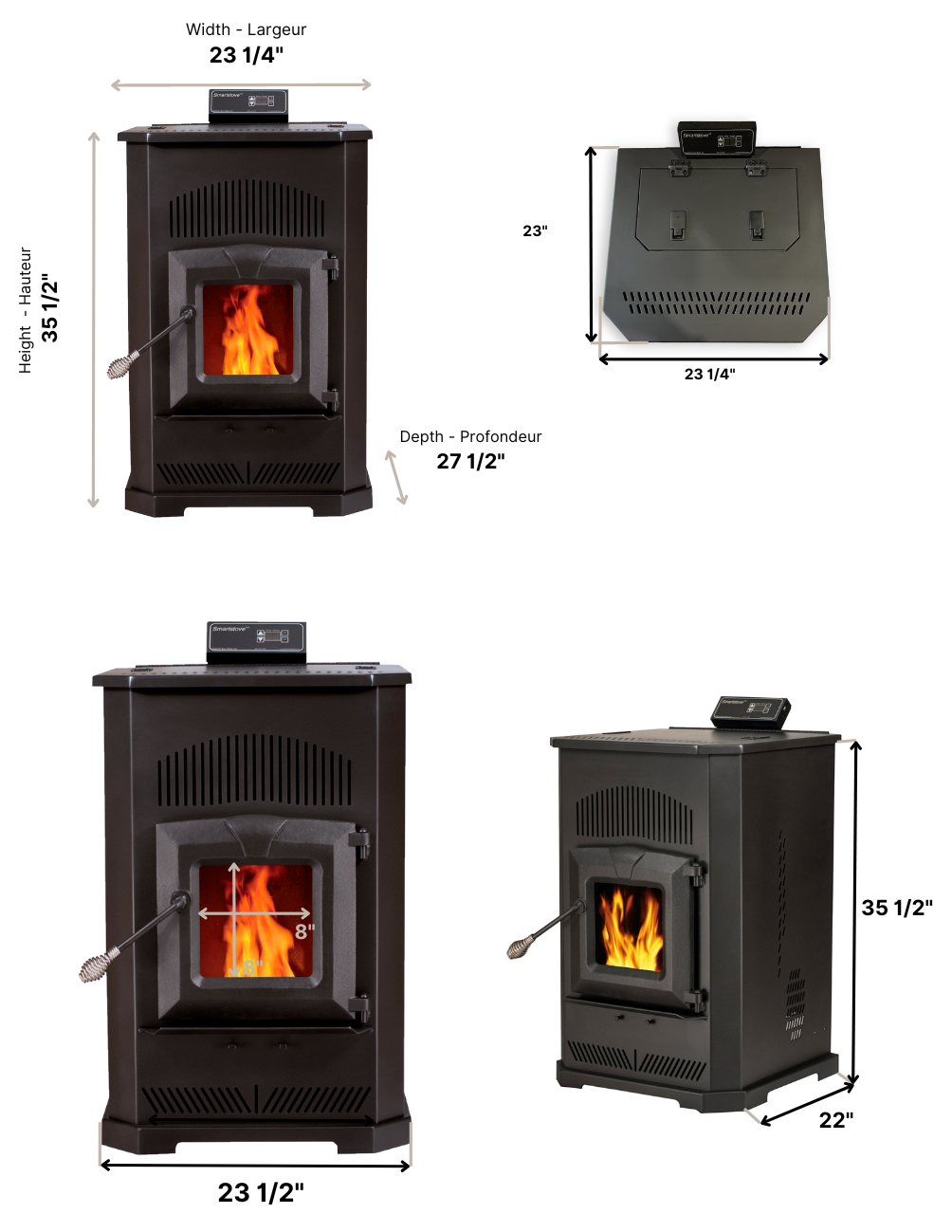

23 1/4"L X 27 1/2"P X 35 1/2"H
500 - 2,000 ft²
36 h
80 lb
Full specifications
Description

This cabinet-style pellet stove is built with both form and function in mind.

It is powered by an auto-start igniter and our proven, user-friendly control board for quick and easy operation – just press ON and choose your desired heat setting.

The auto-ignition system ensures that the stove will safely light, and the control system takes over to ensure a safe, efficient burn. A large, 80-lb. capacity hopper holds enough pellet fuel for overnight burns (as well as reduced loading on your part), and the large viewing glass with air wash system gives a great view of the fire.

This stove heats up to 2,000 ft², and a fresh air hook-up kit is included at no charge. A stylish nickel cool-touch handle accents the stately, beveled cast iron door. The stove is mobile home approved.

• Made in USA

• Heats up to 2,000 ft²

• Hopper holds 80 lb of wood pellets

• Up to 36h burn time per filling

• Mobile home approved

• Outside air kit included

Specifications

General features

Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
250 CFM included
Combustion technology
Bottom-feed
Baffle type
Mild steel
Flue outlet diameter
3"
Recommended chimney diameter
3"-4"
Type of chimney
ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width)
23 1/4"
Overall dimension (Height)
35 1/2"
Overall dimension (Depth)
27 1/2"
Voltage and frequency
120 VAC / 60 Hz
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface - W x H
8" x 8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA, ASTM E2779
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, ASTM E1509
Warranty
5 year Limited
Shipping weight
330 lb

Appliance performance

Fuel type(12)
Premium Grade Wood Pellets
Heating area(10)
500 - 2,000 ft²
Hopper capacity
80 lb
Maximum burn time(10)
36 h
Maximum heat input rate (4)
31,820 BTU/h (9.33 kW)
Minimum overall heat output rate(5)
11,641 BTU/h (3.41 kW)
Maximum overall heat output rate(5)
20,959 BTU/h (6.15 kW)
Minimum average overall efficiency (HHV)(6)(8)
61.10%
Maximum average overall efficiency (LHV)(6)(7)
68.30%
Optimum efficiency(2)
64.10%
Optimum heat transfer efficiency(9)
61.10%
Burn rate
3.70 lb/h
Average particulate emission rate(3)
1.13 g/h
Average CO(11)
1.74 g/h
Average electrical power consumption for ignition cycle (1)
5.65A (729 W)
Average electrical power consumption for continuous operation (1)
3.15A (479 W)

Clearances

Canada
United States
Clearance - Back wall 0"0"Clearance - Side wall 7"7"Clearance - Corner 5"5"Clearance - Base of the unit to ceiling**84"84"
