Enerzone

EnerzoneSKU: EB00068-Bundle

Solution 4.5 ZC

Out of stock

Free Curbside Delivery.See Shipping & Delivery Policy

The fireplace has always been the heart of the living room.

Full description

Heating area1,000 - 2,800 ft²

Maximum log length20"

Maximum burn time11 h

Average particulate emission rate1.6 g/h

Full specifications

Customize your productSubtotal: 0

Recommended for installation

Accessories

Description

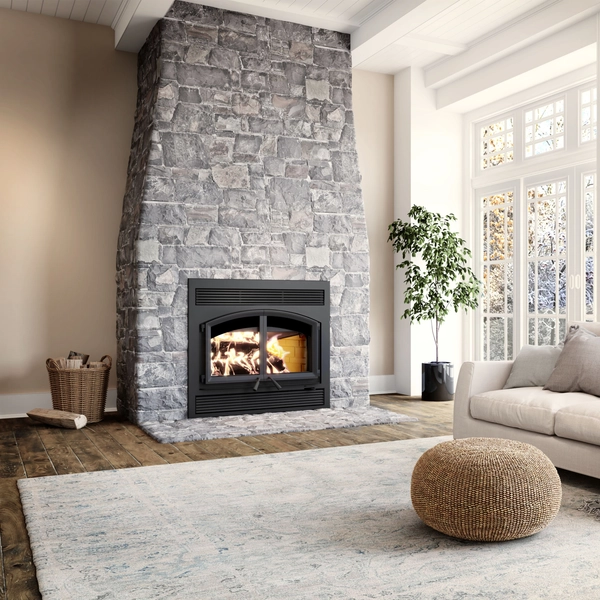

The Solution 4.5 ZC wood-burning fireplace reinvents the traditional fireplace experience by integrating a touch of modernity and ecological performance. It stands out for its high efficiency rate, ensuring abundant heat while optimizing your wood consumption. Its clean combustion technology significantly reduces emissions, making the Solution 4.5 ZC a preferred choice for wood heating enthusiasts concerned about the ecological impact of their fireplace. Designed for vast spaces, this large model offers a breathtaking view of the flames thanks to its wide glass door for maximum atmosphere and comfort.

Specifications

General features

Baffle type

C-Cast or equivalent

Recommended chimney diameter

Flue outlet diameter

Firebox size (Height)

16 3/4"

Firebox size (Width)

25"

Firebox size (Depth)

17 7/8"

Overall dimension (Height)

43 3/8"

Overall dimension (Width)

50 3/4"

Overall dimension (Depth)

32 1/2"

Door opening size (Height)

12 3/4"

Door opening size (Width)

33"

High-efficiency certified appliance

Yes, EPA 2020 approved

Warranty

Limited lifetime

Minimum chimney height

15'

Maximum log length

20"

Mobile home approved

Canadian Standard (emissions)

CSA B415.1-10

USA Standard (emissions)

EPA

Canadian Standard (safety)

ULC S610

USA Standard (safety)

UL 127

Moulded refractory panels

Yes

Shipping weight

lb ( kg)

Log positioning

Loading over width

Glass surface - W x H

18" x 14 7/8"

Stainless-steel secondary-air system

Yes

Combustion technology

Non-catalytic

Certified according to applicable standards

By an accredited laboratory (CAN/USA)

Type of chimney

CAN/ULC S629, UL 103 HT (2100 °F)

Door type

Double, glass with cast iron frame

Premium quality blower included (CFM)

176 CFM included

Glass type

Ceramic glass

Appliance performance

Optimum efficiency(1)(2)

70 %

Average particulate emission rate(3)

1.6 g/h

EPA loading volume

4.28 ft³

Maximum heat output-dry cordwood(4)

95,000 BTU/h (27.8 kW)

Maximum overall heat output rate(4)(5)

43,000 BTU/h (12.6 kW)

Minimum overall heat output rate(4)(5)

16,900 BTU/h (5.0 kW)

Average overall efficiency-dry cordwood (HHV)(5)(6)

64 %

Average overall efficiency-dry cordwood (LHV)(5)(7)

69 %

Optimum heat transfer efficiency(8)

69 %

Heating area(9)

1,000 - 2,800 ft²

Average CO(10)

159 g/h

Maximum burn time(9)

11 h

Fuel type

Dry cordwood (16" recommended)

Overall firebox volume

4.28 ft³

Clearances

Clearance - Base of the unit to ceiling**80"80"Clearance - Combustible side mantle to unit8"8"Clearance - Base of the unit to a combustible shelf58"58"

Manuals and Instructions

Consult the available manuals and leaflets for more information on performance, installation and use requirements, etc.

Installation & Operation Requirements

Installation Instructions for faceplate & louvers
